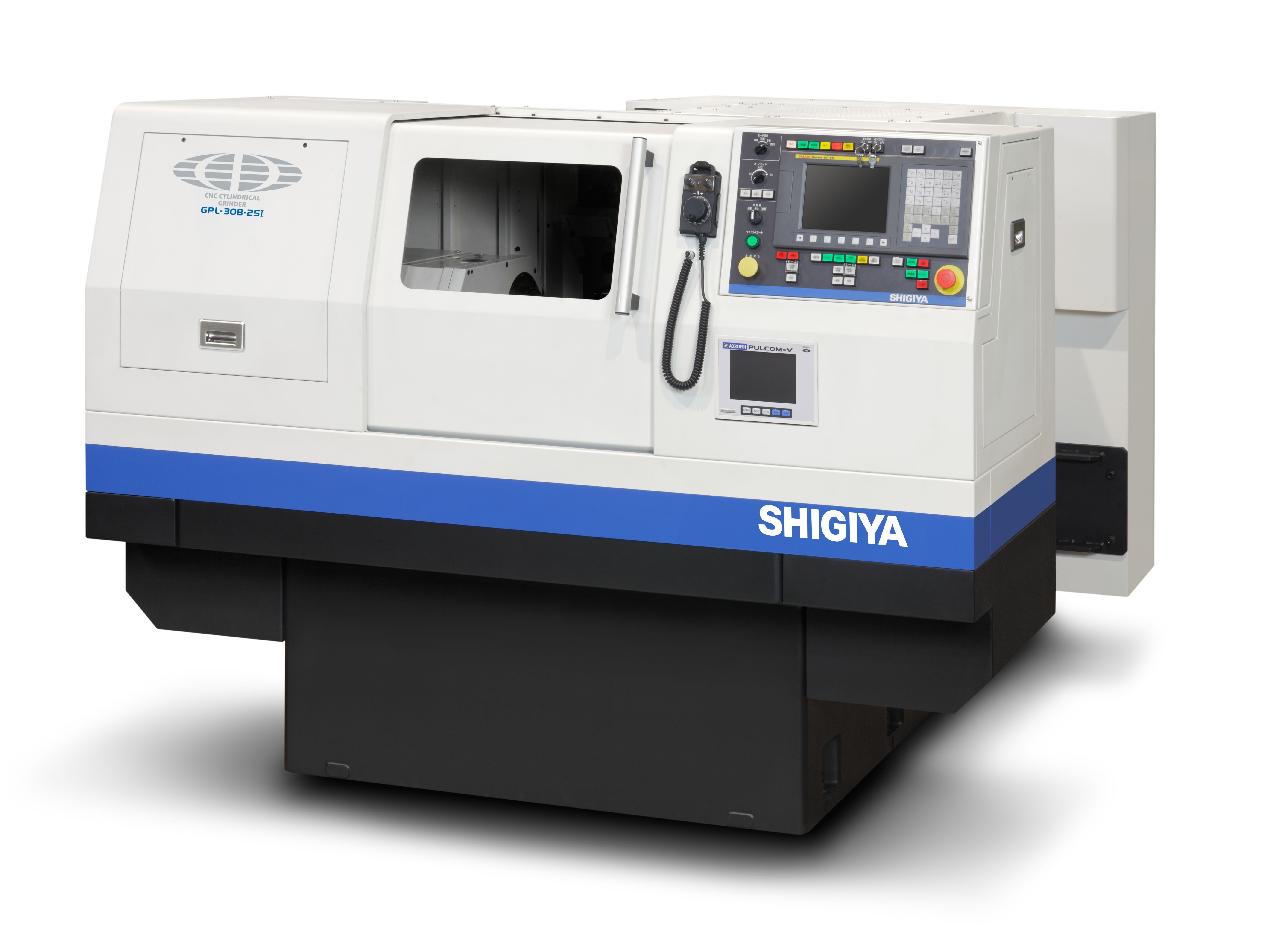

GPL-30B
CNC cylindrical grinder
Versatility is the hallmark of the GPL-30B CNC cylindrical grinder. It is tough enough to satisfy larger production jobs and nimble enough to make completion of even the smallest lots profitable. The large selection of options provides more production flexibility and offers the best choice to meet customers' customization needs.
Axial Orientation
Metric
Specifications | Units | |
Swing Over Table | mm | 300 |
Distance Between Centers | mm | 500, 750, 1000, 1500, 2000 |
Weight Capacity | kg | 150 |
Machine Weight | kg | 2800 / 3100 / 3800 / 4600 |
Wheel Size OD | mm | 405 / 455 / 510 |
Wheel size width | mm | 100 |
Wheel spindle | KW | 3.7 / 5.5 / 7.5 |
Standard
Specifications | Units | |
Swing Over Table | inch | 11.81 |
Distance Between Centers | inch | 19.69 / 29.53 / 39.37 / 59.06 / 78.74 |
Weight Capacity | lbs | 330.69 |
Machine Weight | lbs | 6172.94 / 6834.33 / 8377.57 / 10141.26 |
Wheel Size OD | inch | 15.94 / 17.91 / 20.08 |
Wheel size width | inch | 3.94 |
Wheel spindle | HP | 4.96 / 7.38 / 10.06 |
* Other specifications available.
* All specifications are subject to change.
